ST-102052-CC

کاتالوگ:
Termination Panels STARTECH
تولید کننده:
STARTECH

2RU Fiber Termination Patch/Splice Panel

The PivotSystem1RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 48 fibers is desired.

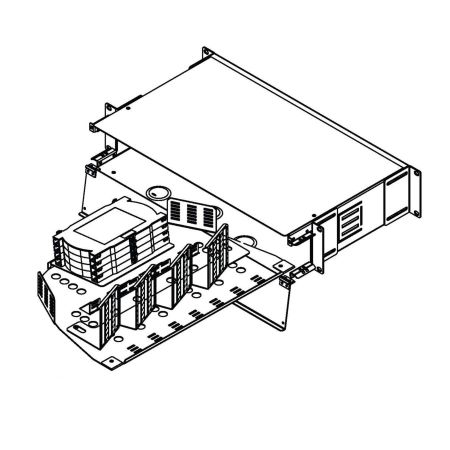

This solution allows for easy access to the front patch cords as well as the splice trays and pigtails after being swing out. Standard panels are available empty for complete field configuration, half-loaded with adapter plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length.

Features

  • Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments
  • Most common connector styles and types available
  • Compatible with industry standard equipment frames
  • Modular design
  • Swing-open front swing-out tray
  • Optional splice tray kit for on site conversion to patch and splice panel

Specifications

  • Cold roller steel
  • Durable textured powder coat finish available in black or white
  • Universal 19/21" EIA/TIA rack compatibility
  • Standard density: up to 24 fiber, High density: up to 48 fiber
  • Front and back side mounting options
  • Standard cable stub location is leftside
  • Optional cable stub location s is rear
Applications
  • Telecommunications closets
  • Data Centers
  • Customer Premise
  • LAN / WAN Networks
  • Central Offices / Headends
  • Hubs / Cabinets / Remote Terminals
  • FTTH / FTTB Networks

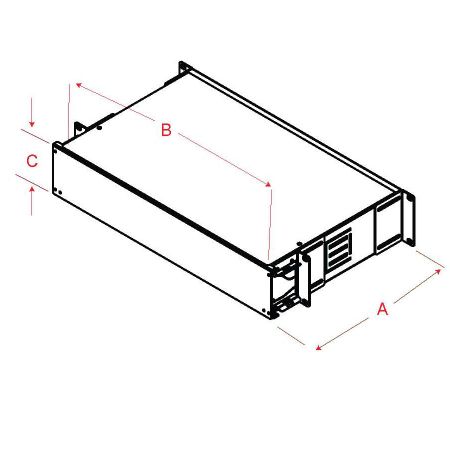

Dimensions

SwingSystem 2RU Fiber Termination Patch/Splice Panel

  • Depth A : 280 mm
  • Width B : 482.6 mm
  • Height C : 44.45 mm
  • Rack Units : 2
  • Capacity : 24/48
  • Unloaded Weight : 1.7 kg

Order Number

SwingSystem 2RU Fiber Termination Patch/Splice Panel

  • ST-102052-CC : SwingSystem 2RU Fibre Optic Termination Panel,19" - Rotatable Swing Type without front panel, Colour:Black- RAL9005 or Light Grey-RAL7035, ( 2 ea. 50 cm Plastic Spiral Tube Ø13mm, 4 ea. Adhesive Bunny Clips, 8 ea. 2,5mmX10 Cable Ties )
    • ST-102052-CC.01 : 48 LC Duplex or 48 E2000 Simplex or 48 SC Simplex 2U Angled Front Panel
    • ST-102052-CC.02 : 72 E2000 Simplex or 72 SC Simplex 2U Angled Front Panel
    • ST-102052-CC.03 : 96 E2000 Simplex or 96 SC Simplex 2U Angled Front Panel
    • ST-102052-CC.04 : 48 ST or 48 FC (D-hole) 2U Angled Front Panel

*Ordering Information : CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
