ST-102051-CC

کاتالوگ:
Termination Panels STARTECH
تولید کننده:
STARTECH

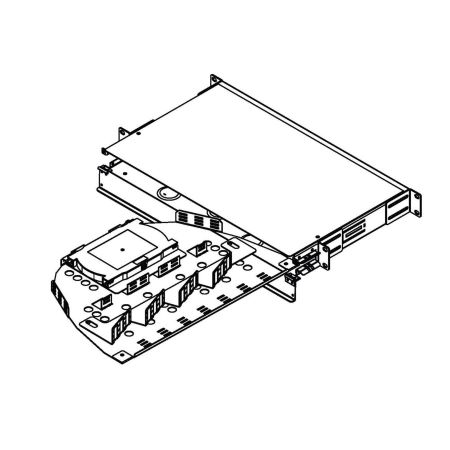

1RU Fiber Termination Patch/Splice Panel

Startech offers an innovative, high density pivot panel has been designed to accept up to 72 fibres housed within a 1RU space. The tray fully manages theincoming fibres, pigtails and splices. The panel can pivot by up to 120° to allow easy access during installation or rework with no disturbance of the existing cable or fibres. Angled adaptors route exiting patch cords directly into the cabinet side management. The panel can be assembled to pivot in either direction, facilitating cable entry from either side.

Features

  • Pivoting tray gives full access to adaptors and fibres whilst managing incoming cable length
  • Angled adaptor plates direct patch cords to side management behind openable front label plate
  • Suitable for up to 4 incoming cables
  • Tray can be assembly left or right handed, and recessed or set forward to accommodate different racks
  • Accepts loose tube, distribution and pre terminated cables.
  • Optional splice tray kit for on site conversion to patch and splice panel

Specifications

  • Cold roller steel
  • Durable textured powder coat finish available in black or white
  • Universal 19/21" EIA/TIA rack compatibility
  • Standard density: up to 24 fiber, High density: up to 48 fiber
  • Front and back side mounting options
  • Standard cable stub location is leftside
  • Optional cable stub location s is rear

Applications

  • Telecommunications closets
  • Data Centers
  • LAN / WAN Networks
  • Central Offices / Headends
  • Hubs / Cabinets / Remote Terminals

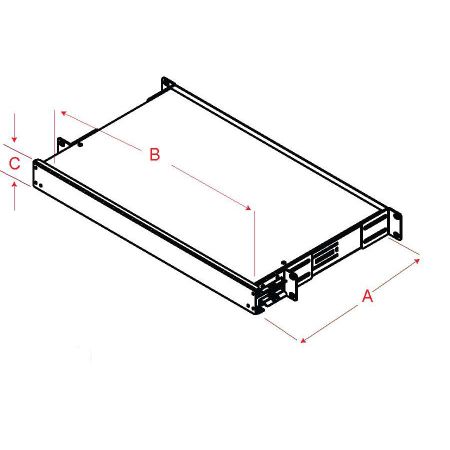

Dimensions

SwingSystem 1RU Fiber Termination Patch/Splice Panel

  • Depth A : 280 mm
  • Width B : 482.6 mm
  • Height C : 44.45 mm
  • Rack Units : 2
  • Capacity : 24/48
  • Unloaded Weight : 1.7 kg

Order Number

SwingSystem 1RU Fiber Termination Patch/Splice Panel

  • ST-102051-CC : SwingSystem 1RU Fibre Optic Termination Panel,19" - Rotatable Swing Type without front panel, Colour: Black-RAL 9005 or Light Grey-RAL7035, ( 1 ea. 50 cm Plastic Spiral Tube Ø13mm, 2 ea. Adhesive Bunny Clips, 4ea. 2,5mmX10 Cable Ties )
    • ST-102051-CC.01 : 12 LC Duplex or 12 E2000 Simplex or 12 SC Simplex 1U Angled Front Panel
    • ST-102051-CC.02 : 24 LC Duplex or 24 E2000 Simplex or 24 SC Simplex 1U Angled Front Panel
    • ST-102051-CC.03 : 36 E2000 Simplex or 36 SC Simplex 1U Angled Front Panel
    • ST-102051-CC.04 : 24 ST or 24 FC (D-hole) 1U Angled Front Panel
    • ST-102051-CC.05 : 12 SC Duplex 1U AngledFront Panel
    • ST-102051-CC.06 : 24 SC Duplex(1.9mm) 1U Angled Front Panel

*Ordering Information : CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
