Small Box ST-103001-CC

کاتالوگ:
Wall Boxes STARTECH
تولید کننده:
STARTECH

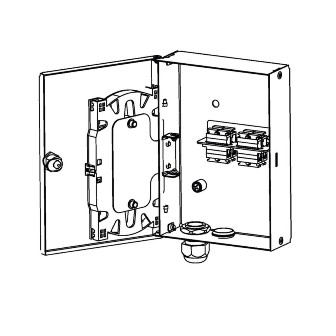

Wall Mount Fiber Termination Patch/Splice Box

The Startech’s OptiBox Fiber Termination Patch/Splice Box is designed for use as a wall mount interconnect point where termination and connectivity of up to 24 fibers is desired. This solution allows easy access to patch cords and pigtails after opening the hinged cassette tray. Standard panels are available empty for complete field configuration, half-loaded with adapter plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length.

Features

  • Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments
  • Most common connector styles and types available
  • Compatible with industry standard equipment frames
  • Single door with tube-style keyed lock for flexibility and security
  • Optional magnetic lock
  • Optional splice tray kit for on site conversion to patch and splice panel

Specifications

  • Cold roller steel
  • Durable textured powder coat finish available in black or white
  • Easy changeable adapter panels
  • Standard density: up to 12 fiber, High density: up to 24 fiber
  • Standard cable stub location is bottom
  • Optional splice trays for splitters

Aplications

  • Telecommunications closets
  • Hub/OTN Sites
  • Customer premise
  • Co-Location sites
  • Campus/enterprise environments
  • FTTH / FTTB Networks

Dimensions

Wall Mount Fiber Termination Patch/Splice Box

  • Depth A : 50 mm
  • Width B : 150 mm
  • Height C : 200 mm
  • Capacity : 6/12/24
  • Unloaded Weight : 0.5kg

Order Number :

Small Fiber Termination Patch/Splice Box

  • ST-103001-CC : Small Fibre Optic Termination Box-Single Door with Tube-Style Keyed Lock without Adapter Plate, Colour:Black-RAL9005 or Light Grey-RAL7035, (2 ea. PG16 Plastic Gland, 1 ea. 50cm Spiral Wrap, 4 ea. 2,5mmX10 Cable Ties)
    • ST-103001-CC.01 : 4 SC Duplex or 4 LC Quad Horizantal Adapter Plate
    • ST-103001-CC.02 : 6 SC Duplex or 6 LC Quad Horizantal Adapter Plate
    • ST-103001-CC.03 : 6 LC Duplex or 6 E2000 Simplex or 6 SC Simplex Adapter Plate
    • ST-103001-CC.04 : 12 LC Duplex or 12 E2000 Simplex or 12 SC Simplex Adapter Plate
    • ST-103001-CC.05 : 8 ST or 8 FC (D-hole) Adapter Plate
    • ST-103001-CC.06 : 12 ST or 12 FC (D-hole) Adapter Plate

*Ordering Information : CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
