Large Box ST-103021-CC

کاتالوگ:
Wall Boxes STARTECH
تولید کننده:
STARTECH

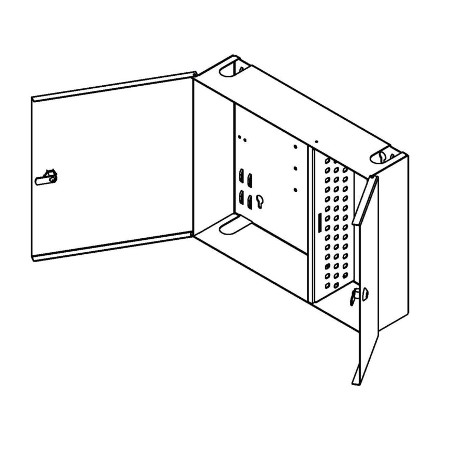

Wall Mount Fiber Termination Patch/Splice Box

The StarTech’s OptiBox Fiber Termination Patch/Splice Box is designed for use as a wall mount interconnect point where termination and connectivity of up to 96 fibers is desired. This solution allows easy access to patch cords and pigtails after opening the hinged cassette tray. Standard panels are available empty for complete field configuration, half-loaded with
adapter plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length.

Features

  • Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments
  • Most common connector styles and types available
  • Compatible with industry standard equipment frames
  • Single door with tube-style keyed lock for flexibility and security
  • Optional magnetic lock
  • Optional splice tray kit for on site conversion to patch and splice panel

Specifications

  • Cold roller steel
  • Durable textured powder coat finish available in black or white
  • Easy changeable adapter panels
  • Standard density: up to 48 fiber, High density: up to 96fiber
  • Standard cable stub location is bottom
  • Optional splice trays for splitters

Aplication

  • Telecommunications closets
  • Hub/OTN Sites
  • Customer premise
  • Co-Location sites
  • Campus/enterprise environments
  • FTTH / FTTB Networks

Dimensions

Alfafonet

  • Depth A : 50 mm
  • Width B : 150 mm
  • Height C : 200 mm
  • Rack Units : 2
  • Capacity : 6/12/24
  • Unloaded Weight : 0.5kg

Order Number :

OptiBox Medium Fibre Optic Termination Box

  • ST-103021-CC : Larg Fibre Optic Termination Box Double Door with Tube-Style Keyed Locks without Adapter Plate, Colour: Black-RAL9005 or Light Grey-RAL7035, (4 ea. PG16 Plastic Gland , 4 ea. Adhesive Bunny Clips, 4 ea. 50cm Spiral Wrap, 8 ea. 2,5mmX10 Cable Ties)
    • ST-103021-CC.01 : 48 SC Duplex Vertical Adapter Plate
    • ST-103021-CC.02 : 48 LC Duplex or 48 E2000 Simplex or 48 SC Simplex Adapter Plate
    • ST-103021-CC.03 : 48 ST or 48 FC (D-hole) Adapter Plate

*Ordering Information : CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
